High Efficiency, High Volume Cyclones
Honeyville has 10 sizes of High Efficiency / High Volume (“HE/HV”) cyclones available for applications where maximum efficiency is required. The tall body and steep cone design assures a faster drop of material to the cone outlet.
Honeyville HE/HV cyclones feature the following:
- MATERIAL: Body and cone constructed of heavy gauge, welded hot rolled (“HR”) carbon steel. The cyclone is flanged at the mid-section to bolt together at the job site.
- Optional Materials: Abrasion Resistant (“AR”) Steel, G90 Galvanized Steel, and Stainless Steel
- INLET: 135° scroll involute inlet to move material past the interior conical baffle.
- VENT: Low velocity tangential vent outlet for less air turbulence.
- EXTERIOR SURFACE: The exterior for cyclones made with HR or AR steel are finished with a base primer coat followed by industrial alkyd enamel paint.
- CONE ACCESS DOOR*: 14″ diameter, bolt-on panel, flush with the inside surface.
- *Standard on all cyclones 36″ and larger. Optional 20″ door panel is available.

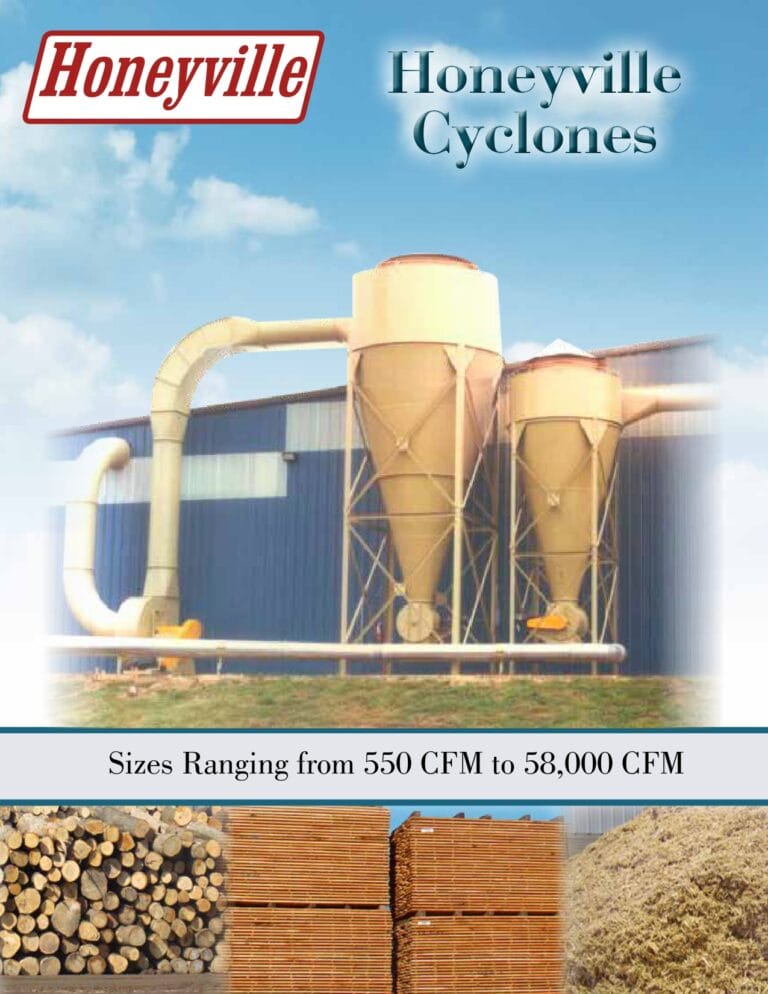

High Efficiency, High Volume Cyclones Brochure
Specifications for HMI HE/HV Cyclones
