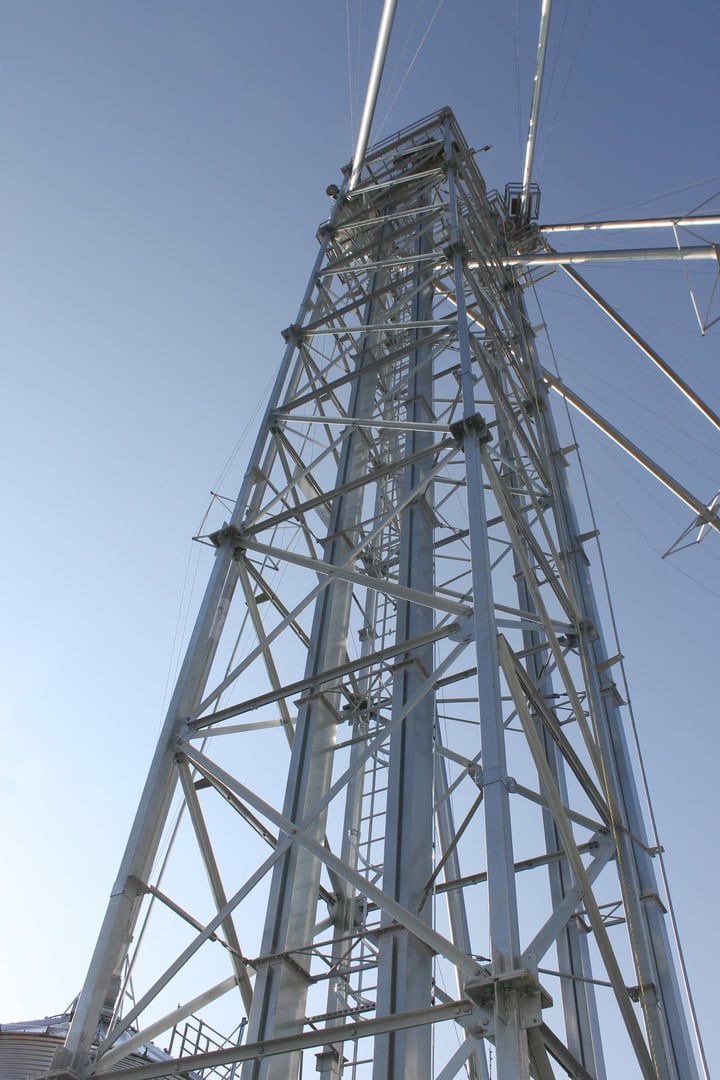

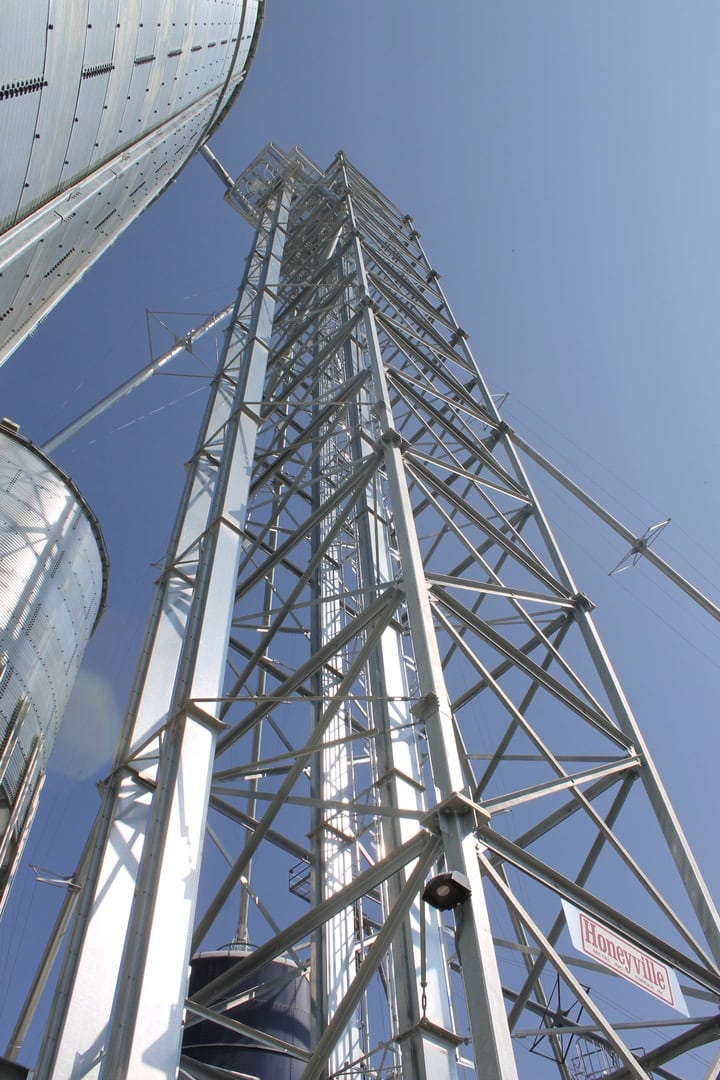

Bucket Elevator Support Towers
Features:
- Jig welded construction for accurate, bolted, on-site assembly
- 20′ vertical modules with optional 5′, 10’, or 15’ modules at the top
- Hot dip galvanizing on all structural weldments and members
- Five standard models with square footprints and optional rectangular models

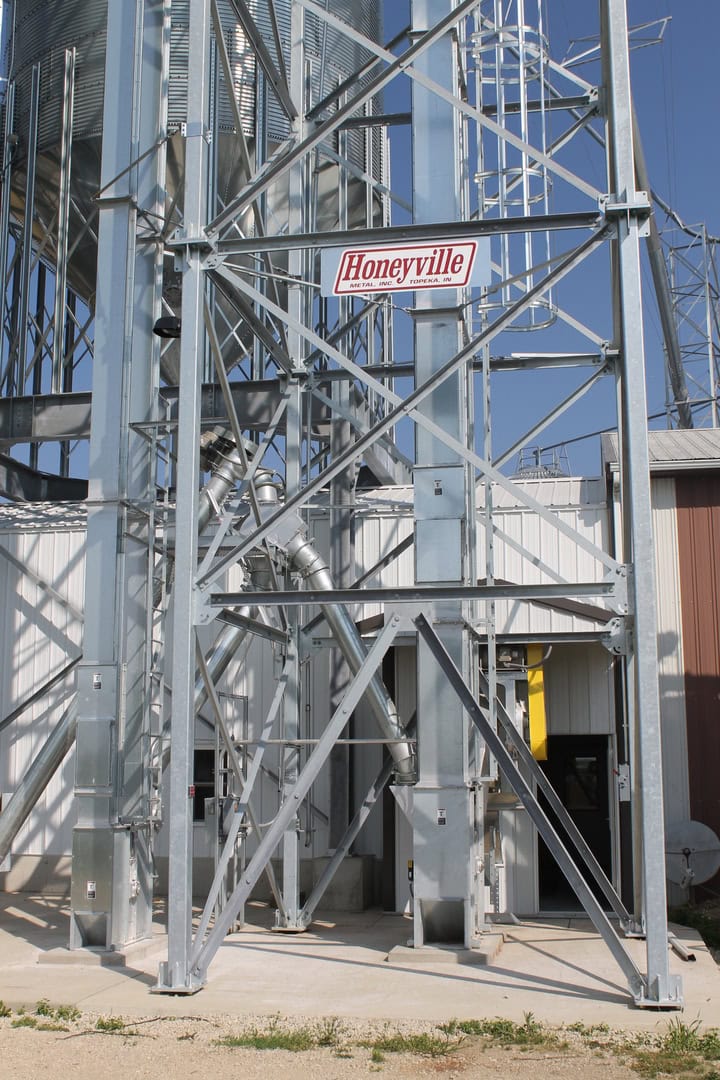

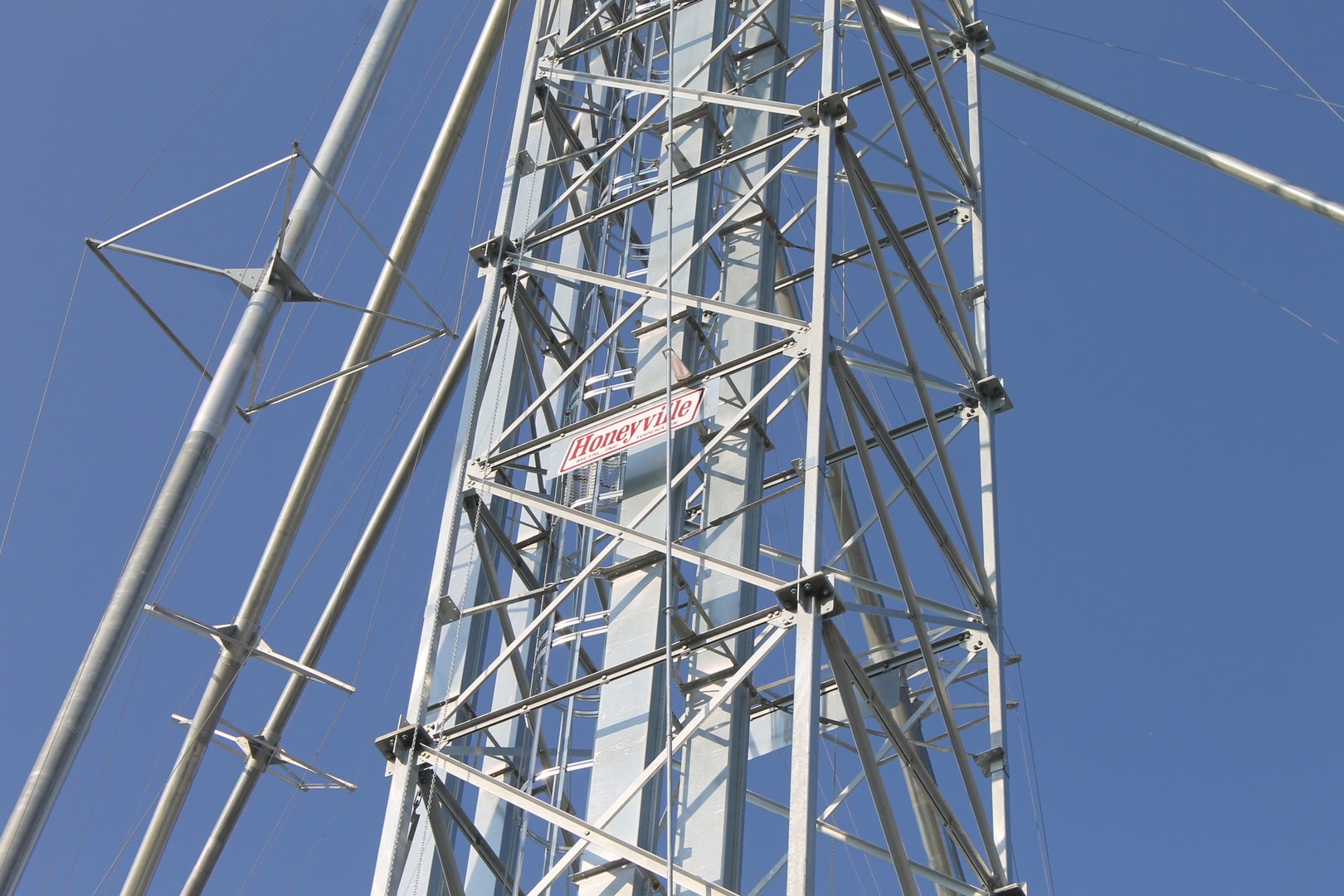

- Cross bracing with horizontal struts standard on all four sides
- Conveyor access diagonal bracing available

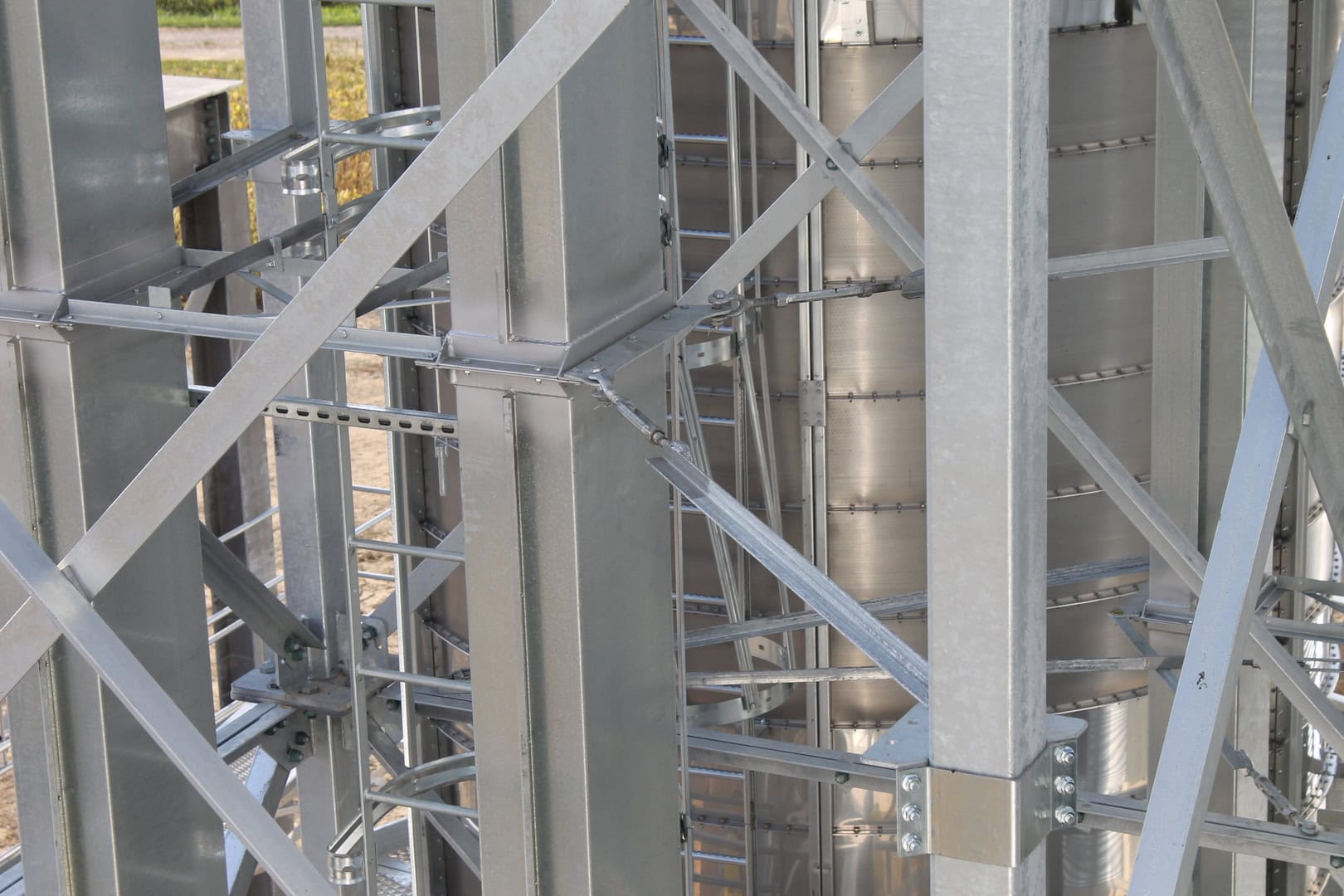

- Bucket Elevator supporting brackets clamp onto the vertical tower columns to simplify mounting to trunking cross braces and flanges
- Structural steel components are greater than 1/8″ thick allowing on-site attachments or modifications
- Standard CAD drawing plans include 3D Isometric views
- Engineered for 105 MPH wind loads based on ASCE 7-10 with optional upgrades to achieve higher ratings
Options:

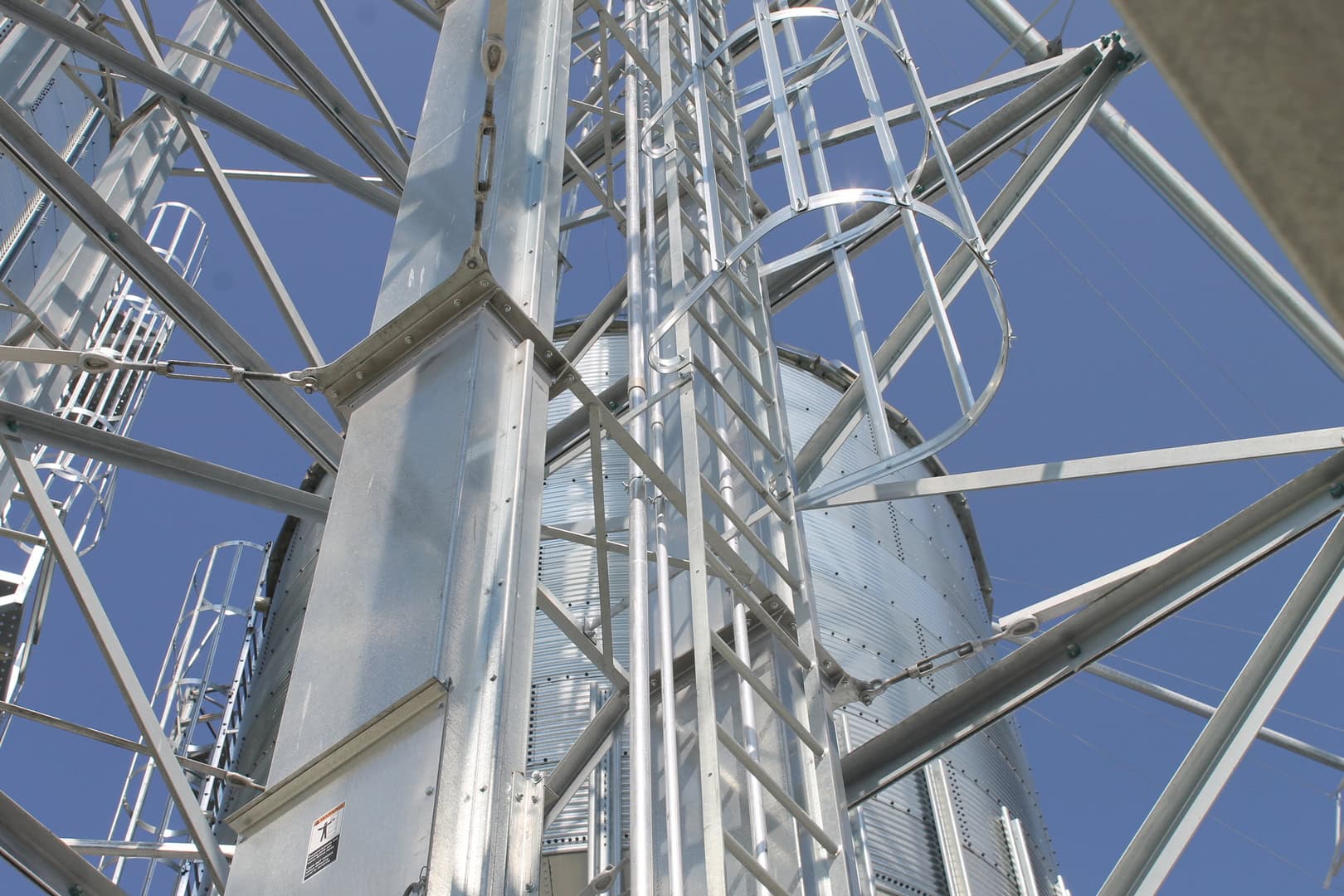

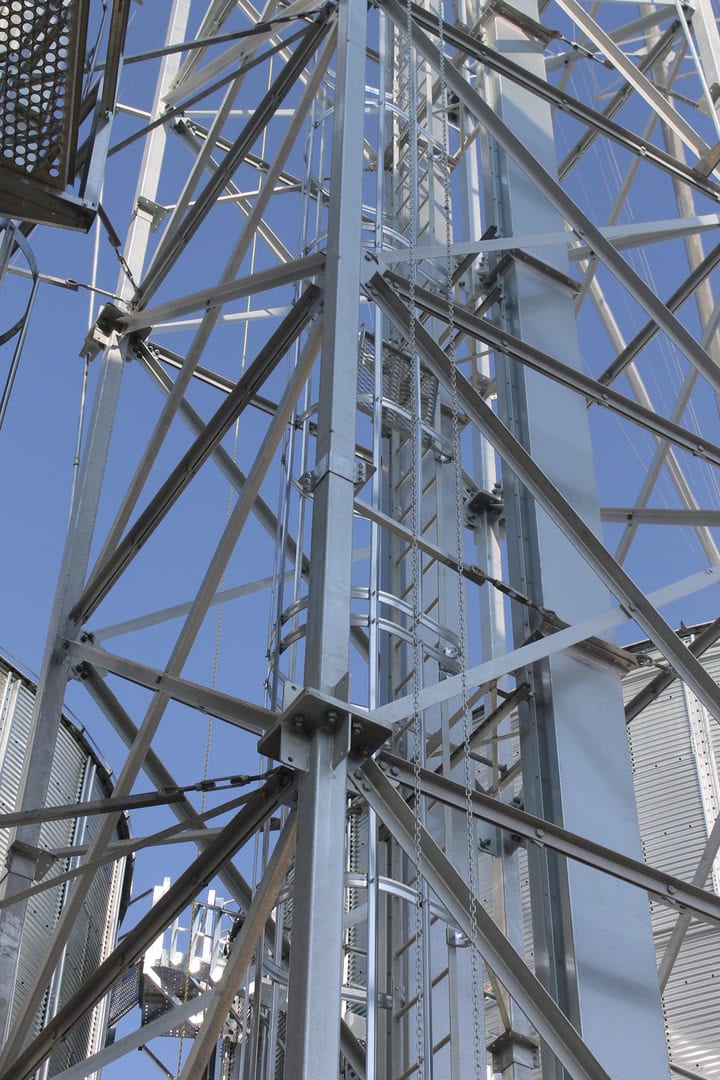

- Ladder & safety cage on the exterior of the tower

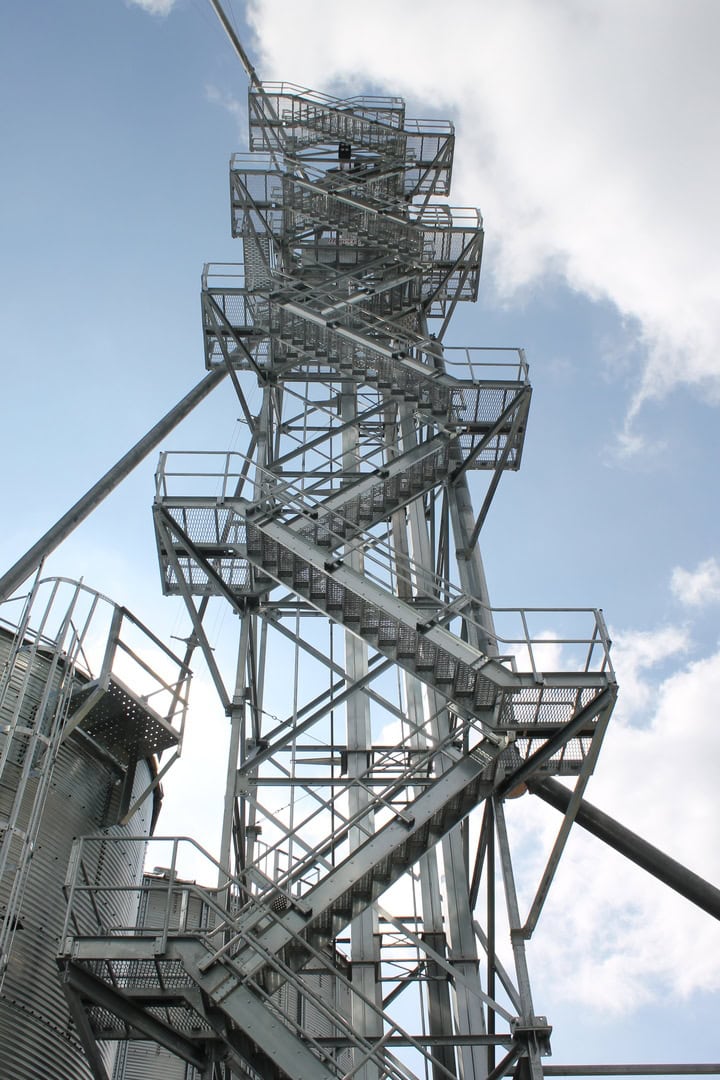

- Heavy duty, switchback stairways with grip strut step treads available with 10’ x 10’ and larger towers

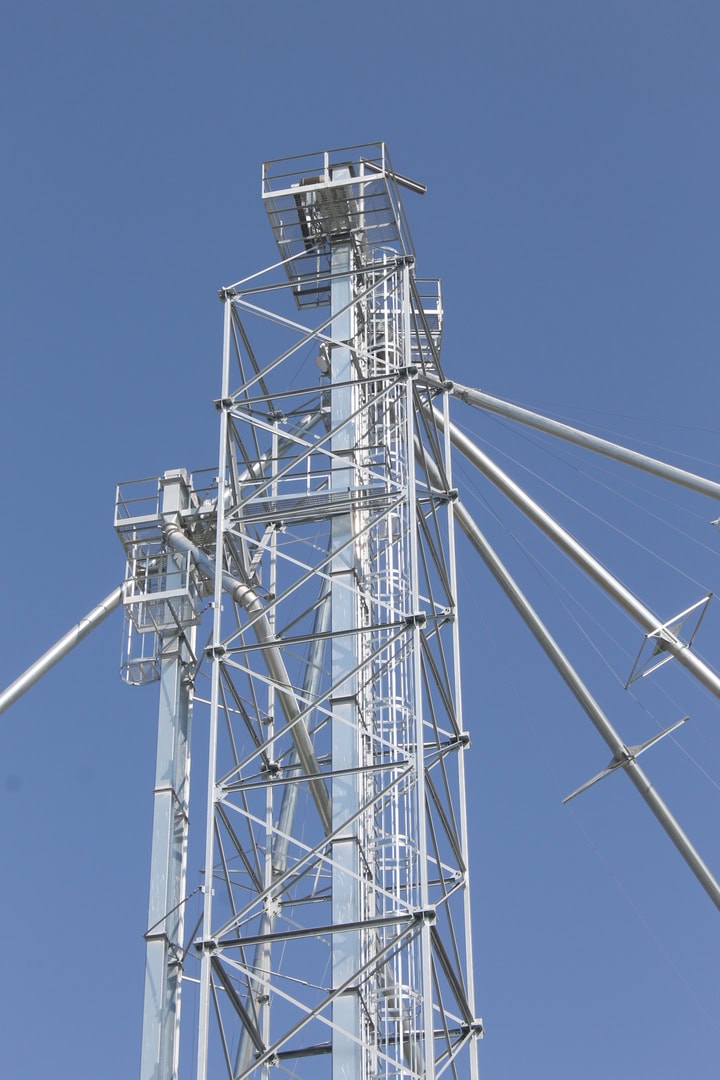

- Top mounting and internal platforms with connection to ladder or stairway
- Multiple elevator mountings inside the tower
- Single elevator outside tower mounting

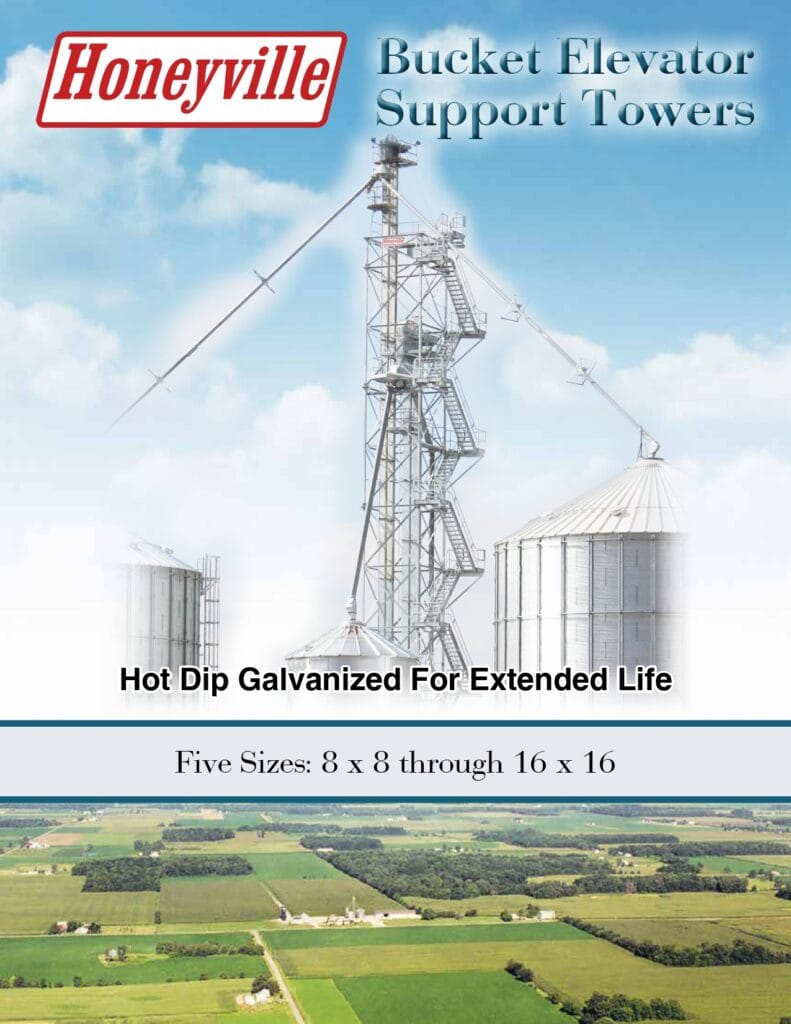

Bucket Elevator Support Towers Brochure
Specifications for HMI Bucket Elevators
