MPC Filters
The Medium Pressure Cleaning (“MPC”) Filters are the newest product in the Honeyville Dust Collection line. They feature a continuous on line cleaning system so you have the same CFM at the end of the day that you started with.
Some of the features include:
- Bag Cleaning: Medium pressure back flush cleaning of bags
- Cone: 67° standard cone section with bolt-on inspection cover
- Inlet: Low pressure 110° involute inlet section with inner cone baffle and vortex breakers
- Optional high entry inlet
- Bags: 4.6″ dia. 16 oz. polyester bags with mirror finish
- Cages: 4.5″ dia. galvanized wire cages
- Bag Removal: No-tool top bag and cage removal
- Construction: Welded and bolted construction using hot rolled carbon steel
- Rupture type explosion relief panels
- Finish: The interior and exterior are prime coated followed by a silicone alkyd industrial enamel paint on the exterior
- Ladder: Galvanized service ladder and safety cage
- Service Access: Service platform at hinged access door to walk-in plenum for filter inspection and service

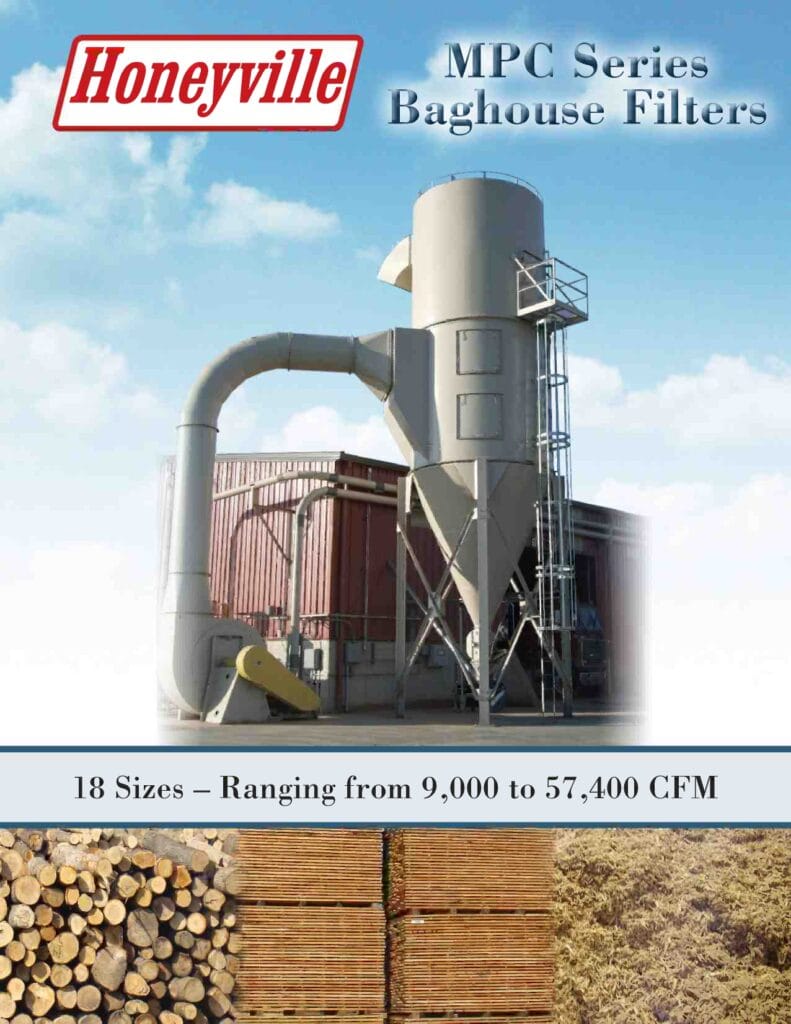

MPC Filters Brochure
Specifications for HMI MPC Filters
