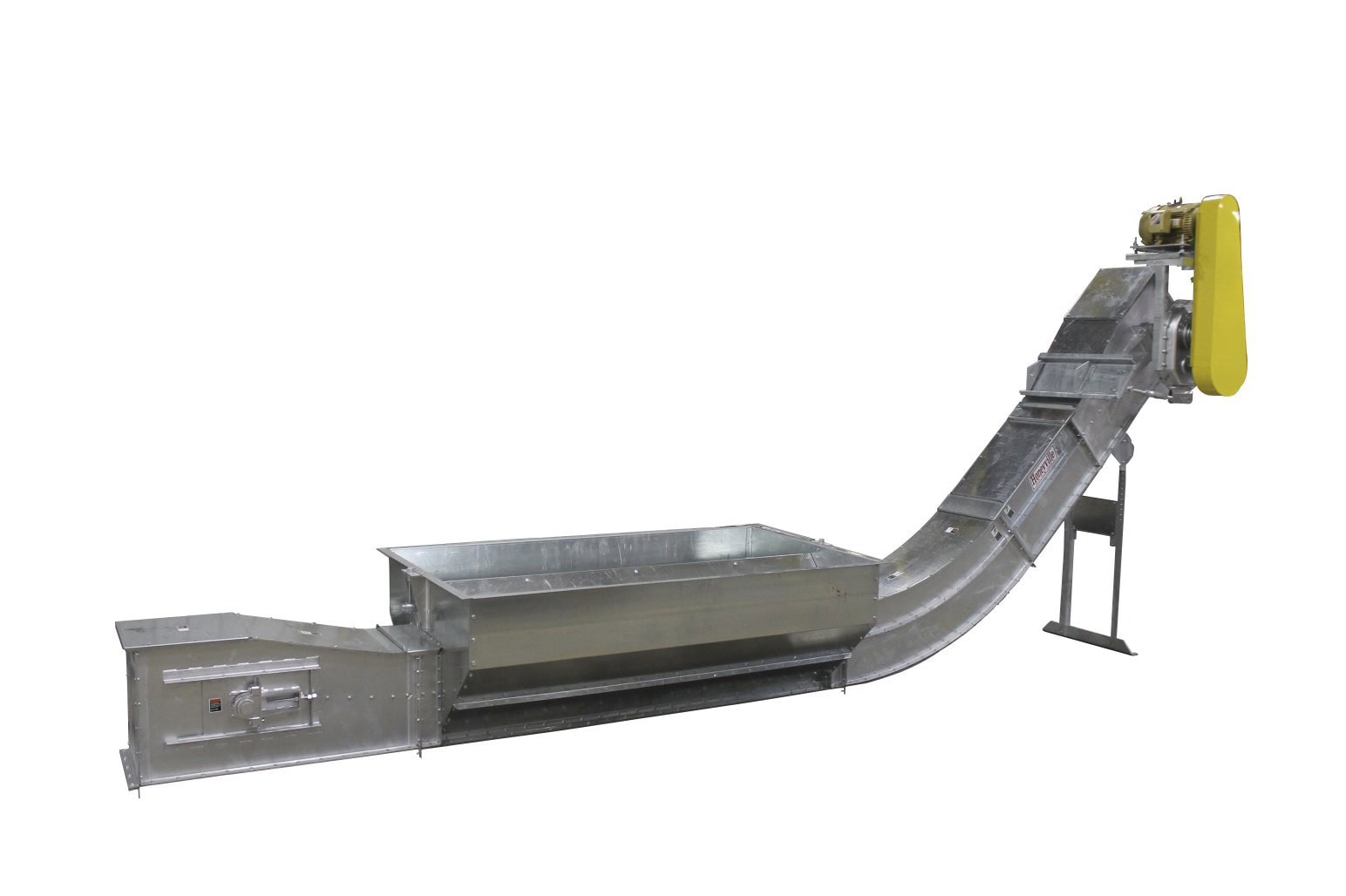

Incline Drag Conveyors (Industrial Series)
The Honeyville Industrial Series Incline Drag Conveyors are available in four different models with capacities from 5,500 BPH up to 20,000 BPH.
Some of the features include:

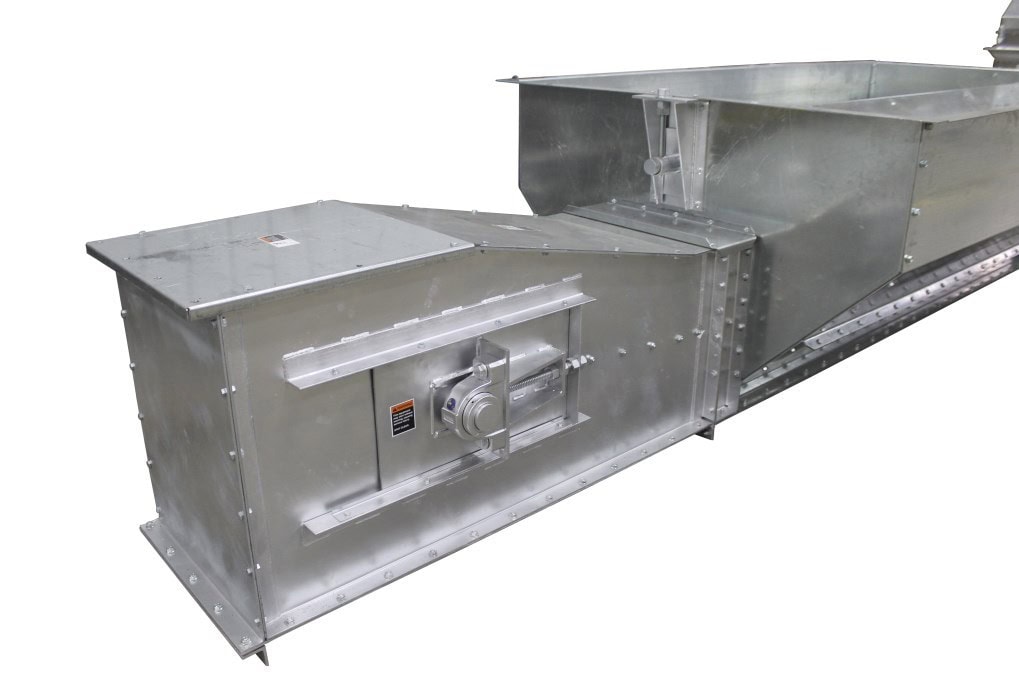

- Material: All galvanized, bolted construction. The head, tail, bend, and trunk sections are made with HR steel, then hot dip galvanized. Conveyor sections throughout have formed top & bottom lips and jig welded angle flanges at adjoining points on the sides and bottom
- AR Lining: Bolt-in AR steel liner options for the bottom, and lower sides providing extended conveyor life
- Pit Hopper: Drive over pit hopper in 5’ and 6’ standard widths, optional 8’ width, all available in varying lengths
- Pit Grates: 1/2” x 4” flat bars on 5’ and 6’ wide hoppers, 1/2” x 6” flat bars on 8’ wide hoppers

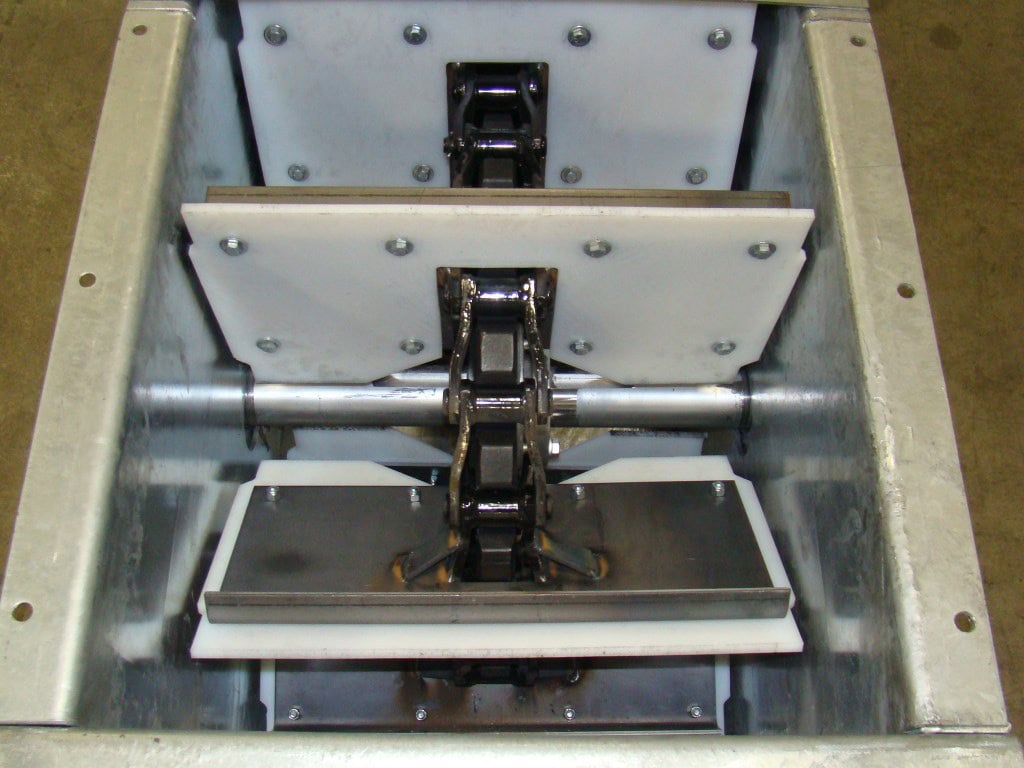

- Chain & Paddles: Heavy duty WR78-4 and WR124 steel chain with welded steel attachments, and bolt-on 3/8” thick UHMW paddles (optional 1/2” thick available).

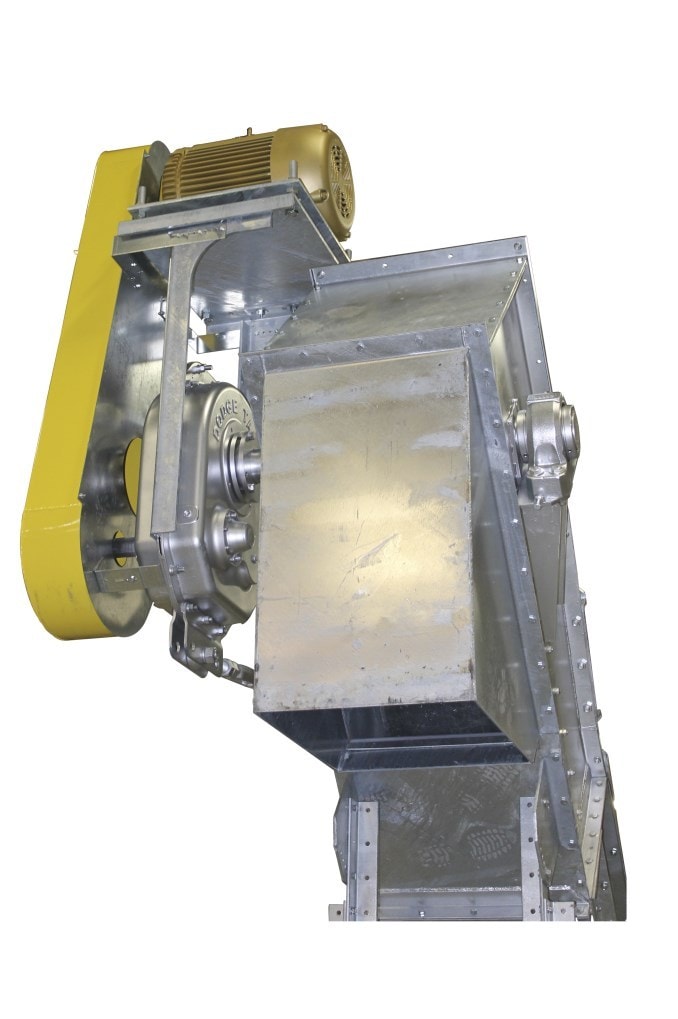

- Gear Drive: Class II Dodge torque-arm type gear reducers installed with fixed pitch v-belt drives and overhead motor mount.
- Bend Section: Long-radius, high flow incline bend sections available in 45° (standard), 30° and 15°.
Incline Industrial Drag Conveyors Brochure
Specifications for HMI Incline Industrial Drag Conveyors
