EFR Pulse-Jet Filters
The Honeyville EFR Pulse-Jet Filters are designed for light to medium dust load applications and utilize cyclone separation and bag filtration. The EFR will effectively filter such materials as grain, feed, flour, minerals, plastics, cement products, and all types of wood waste.
Continuous on line cleaning of the bags makes for a very efficient and economical filter. Bag cleaning is controlled by an electronic timer. The timer control is adjustable in regard to cycle and pulse duration to minimize compressed air usage. Clean, dry air at 90 to 95 PSI must be supplied.
The EFR Pulse-Jet Filters are available in 10 sizes with a recommended CFM Range of 1,000 to 10,000.

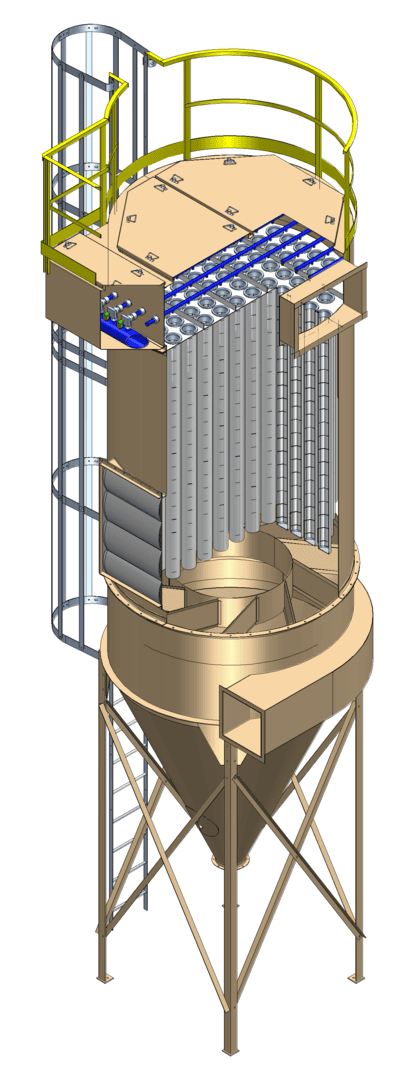

Some of the features include:
- Cone: 67° standard cone section with bolt-on inspection cover
- Inlet: Low pressure 110° involute inlet section with inner cone baffle and vortex breakers
- Optional high entry inlet
- Baffle: Inner cone baffle with vortex breakers
- Bags: 4.6″ dia. 16 oz. polyester bags with mirror finish
- Cages: 4.5″ dia. galvanized wire cages
- X-Venting: Explosion relief panels
- Bag Removal: No-tool top bag and cage removal
- Finish: The interior and exterior are prime coated followed by a silicone alkyd industrial enamel paint on the exterior
- Ladder: Service ladder and perimeter safety railing
EFR Pulse-Jet Filters Brochure
Specifications for HMI EFR Filters
