Conveyor Supports
Conveyor Supports Brochure

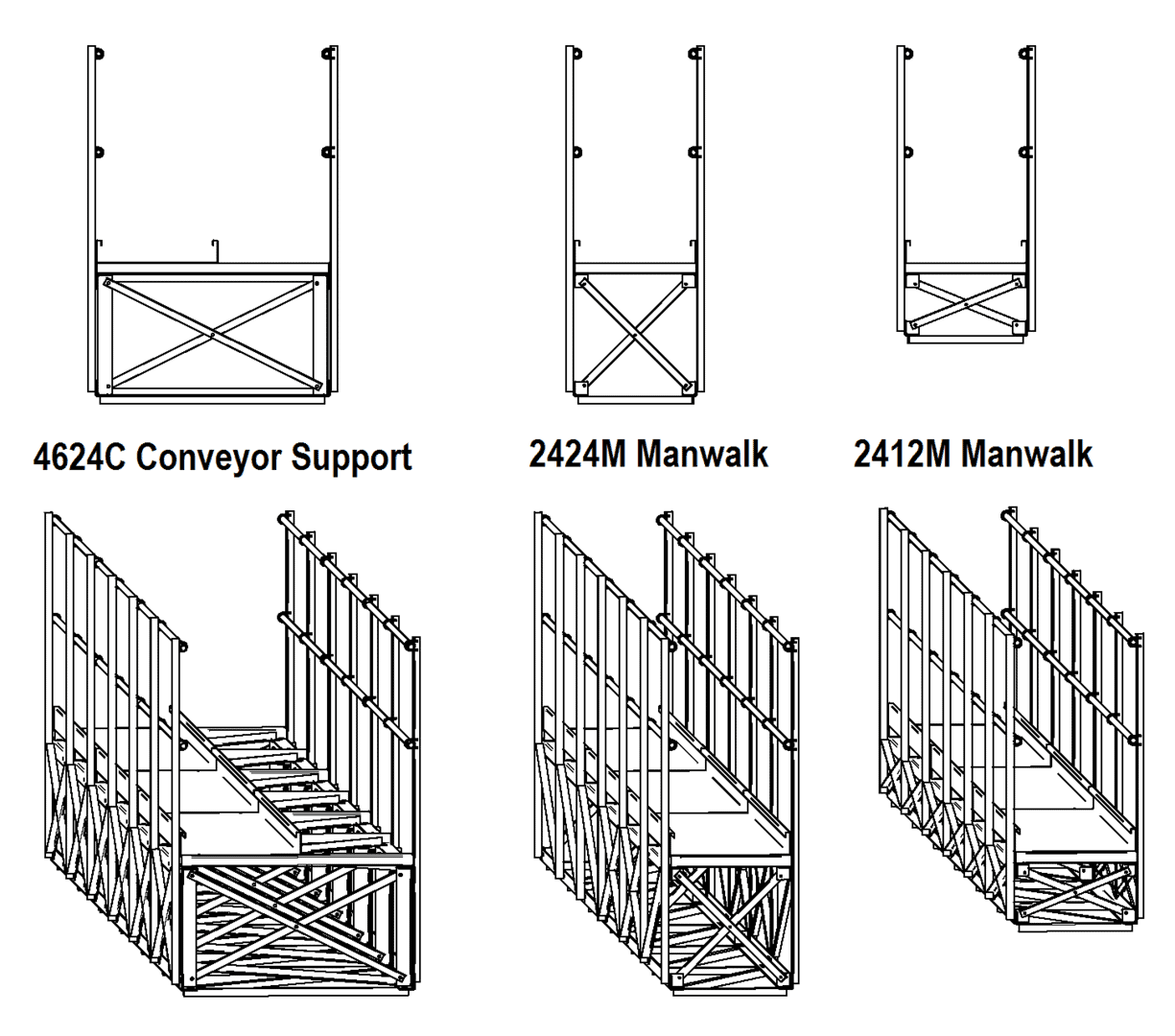

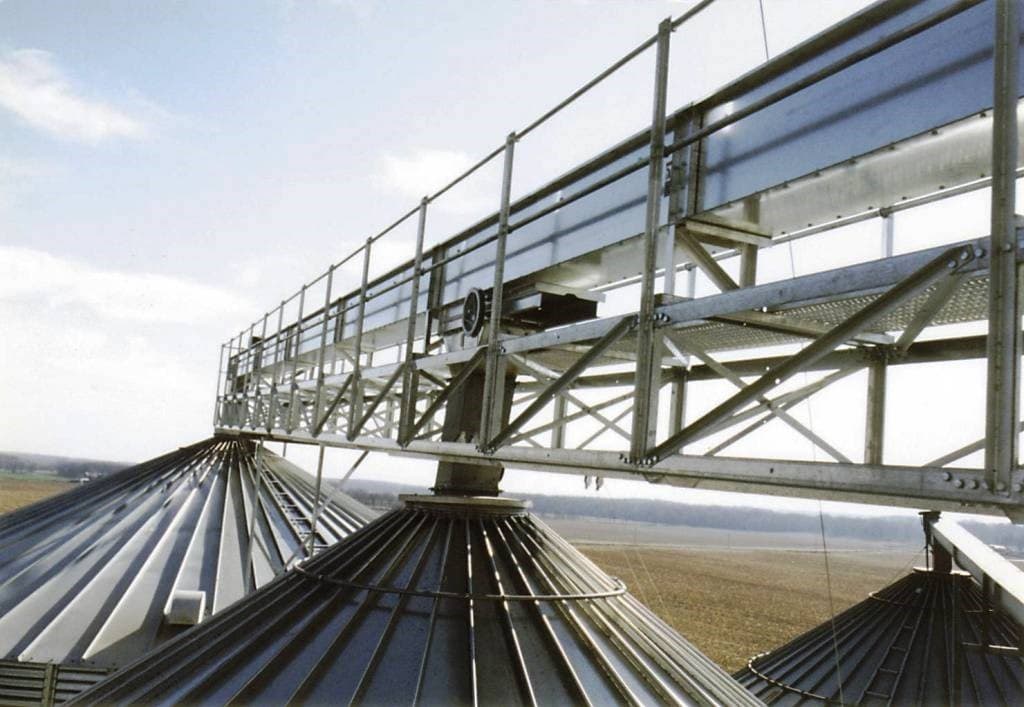

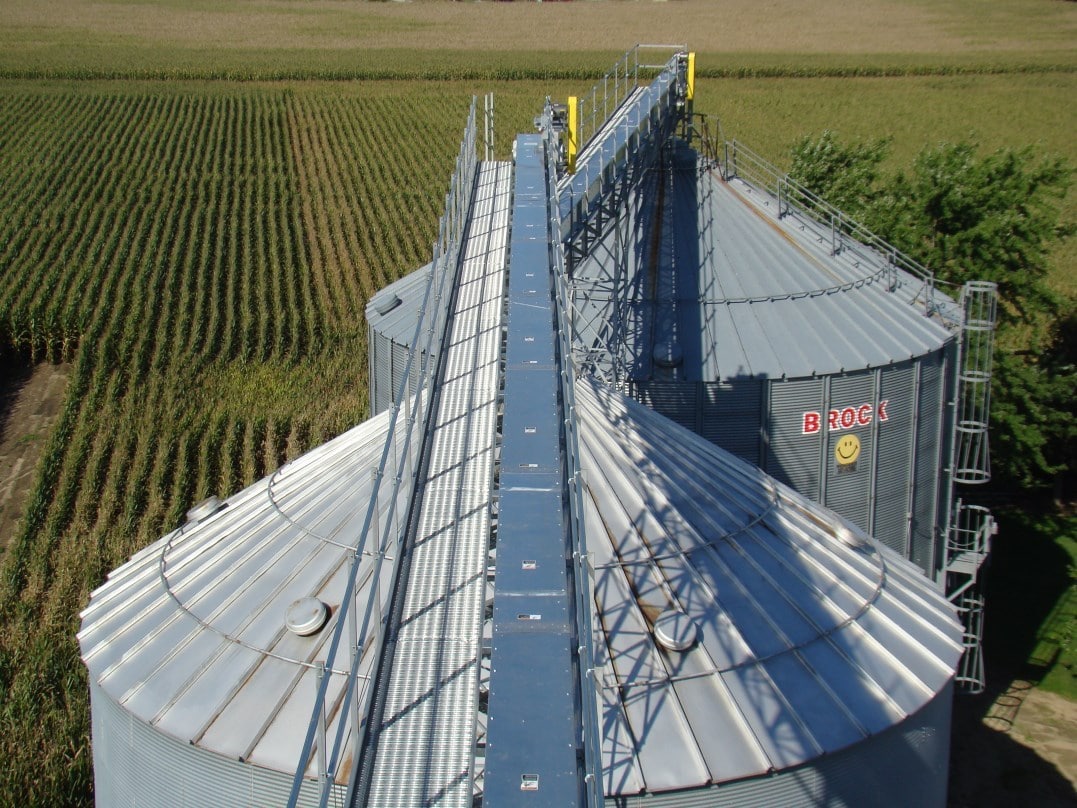

The Honeyville 4624C Conveyor Support, sometimes referred to as a “Catwalk”, is designed to support your drag conveyor as it spans between structures. The 4624C support is 46″ wide, which includes 22″ of space for a conveyor and a 24″ wide galvanized grip surface walkway. It can accommodate Honeyville’s HD-F9, HD-F13, and HD-F16 Horizontal Drag Conveyors.
Some of the features include:
- All Galvanized steel construction for long life and minimum maintenance
- 24″ Truss

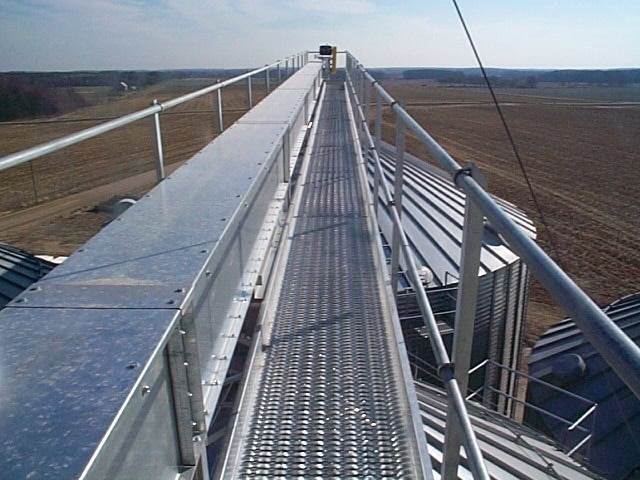

- 24″ Wide galvanized grip surface walkway with toe shield
- 42″ Tall handrails on both sides
The Honeyville 4624C Conveyor Support has been engineered, tested, and certified to accommodate the following conditions based on 40′ clear span structures:
- Weight loading of 140 pounds per lineal foot
- Snow loading of 55 pounds per square foot
- Wind loading of 110 MPH
When spanning distances greater than 40′, you can incorporate a Honeyville Support Tower or Sidewall Tower.
Accessory items available for the Conveyor Support include:

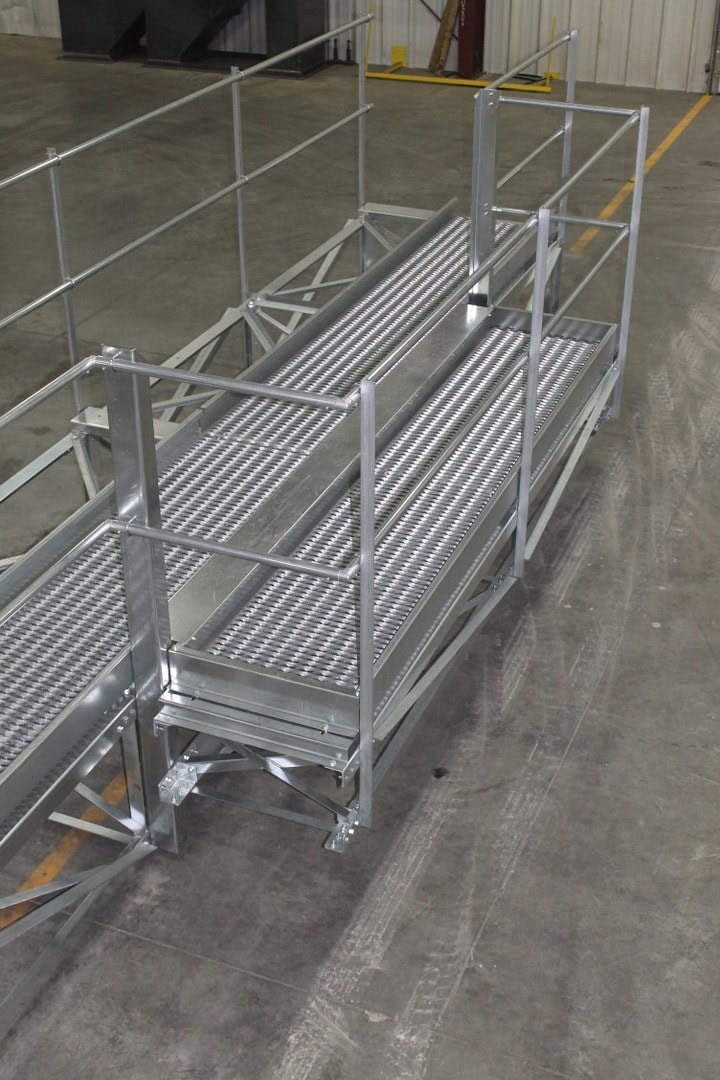

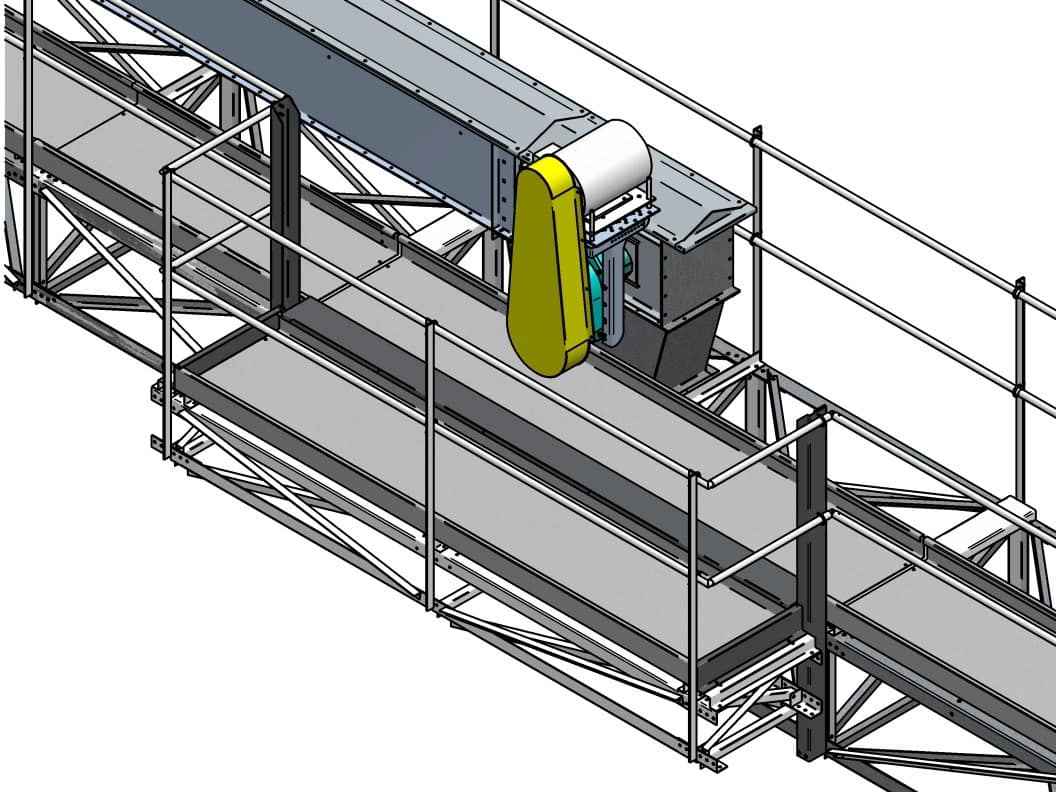

- 10′ Long Manwalk By-Pass for improved clearance around the motor and gear drive

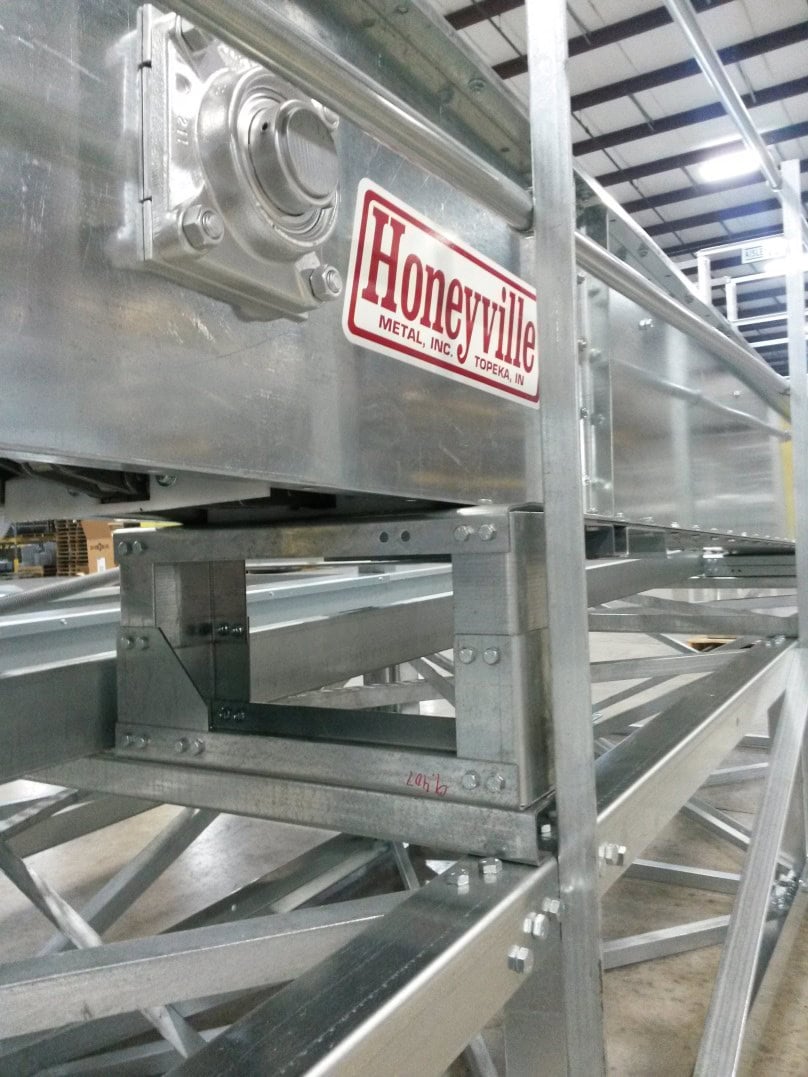

- Adjustable Catwalk Riser Assemblies
- Available with a Sloped or Flat top track
- Assemblies are available in a variety of height ranges from 2″ through 36″
- The vertical channels are punched for the maximum height position of the stated range
- Other heights in the stated range can be achieved by clamping and drilling new holes in the field.
