Bin Unloading Drag Conveyors

The Honeyville Bin Unloading Drag Conveyor is a product developed as an alternative to the tube type screw conveyors that have been a standard for unloading bins for many years.

Some of the features include:

• Capacity: Available in 3 different sizes with capacities ranging from 2,500 to 6,350 BPH
• Installation Options:

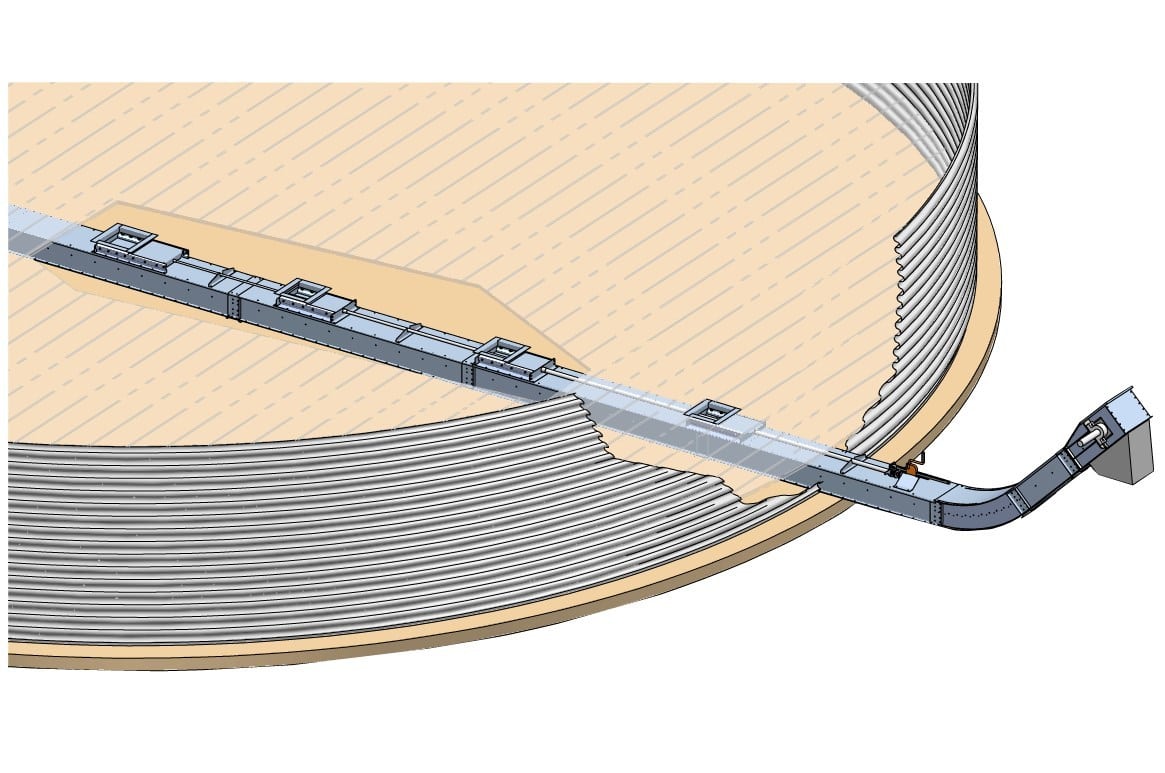

  • Can be installed in a grain bin floor system with a minimum floor height of 18½”
  • Can be installed in a concrete formed tunnel in the grain bin foundation
  • May be set up to service one or multiple grain bins on a common floor level
• Operation:

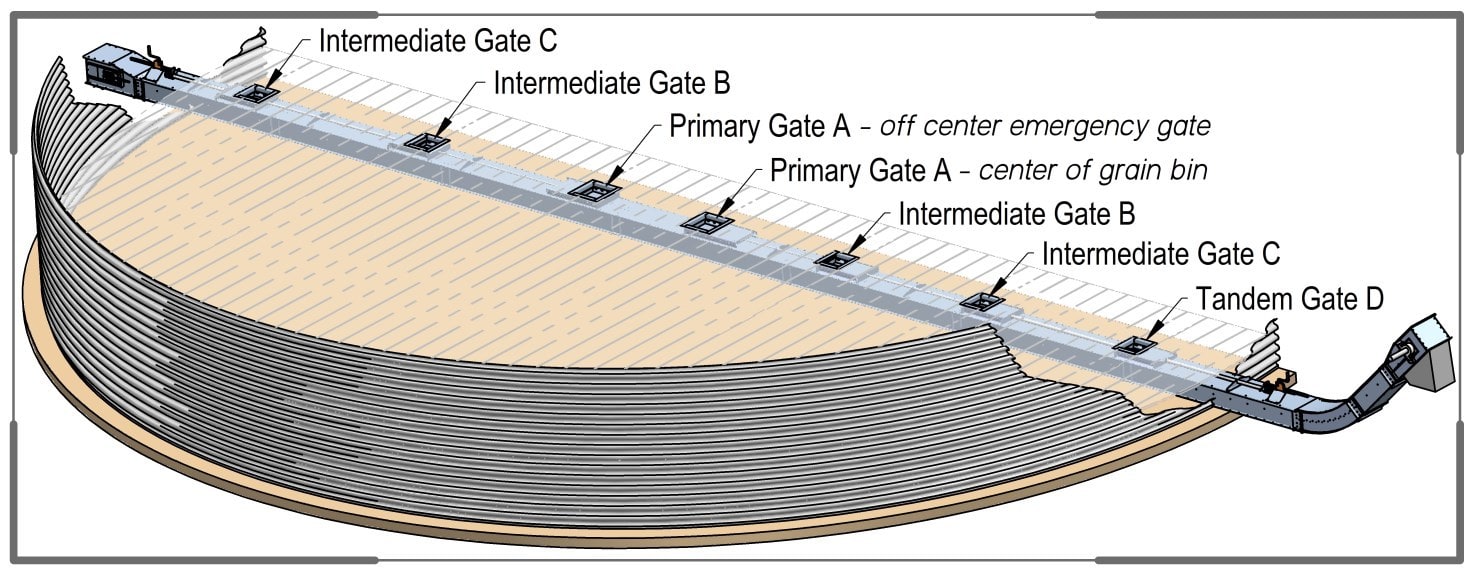

  • Can operate with a single slide gate or multiple gates depending on bin size

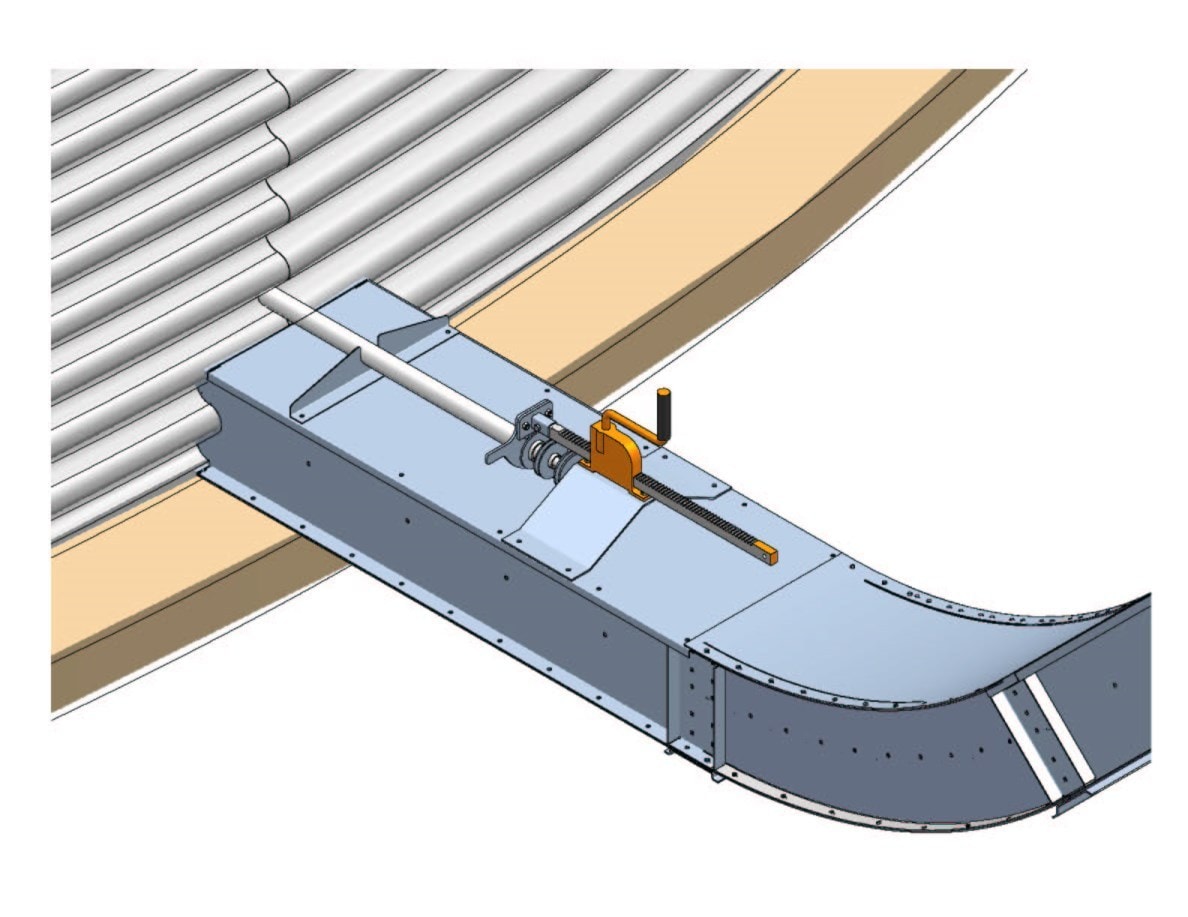

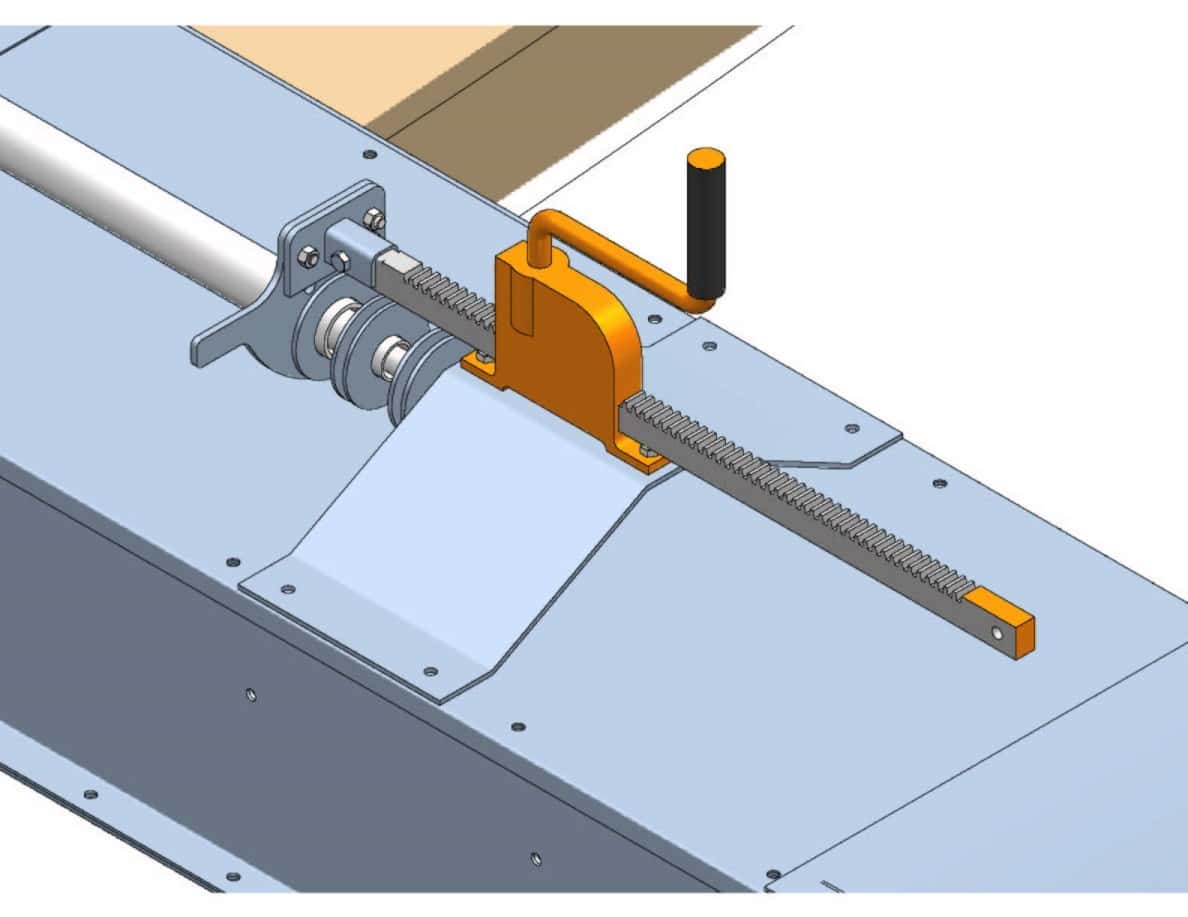

  • Optional Rack and Pinion controller is available for easier gate operation on larger dia. bins.
  • Operates at a lower motor horse power per bushel ratio
  • A more gentle conveying of the grain then a tube type screw conveyor
• Bend Section: Long radius, high flow bend sections available in 15º, 22½º, 30º, 37½º, or 45º for inclining to a bucket elevator or truck load-out

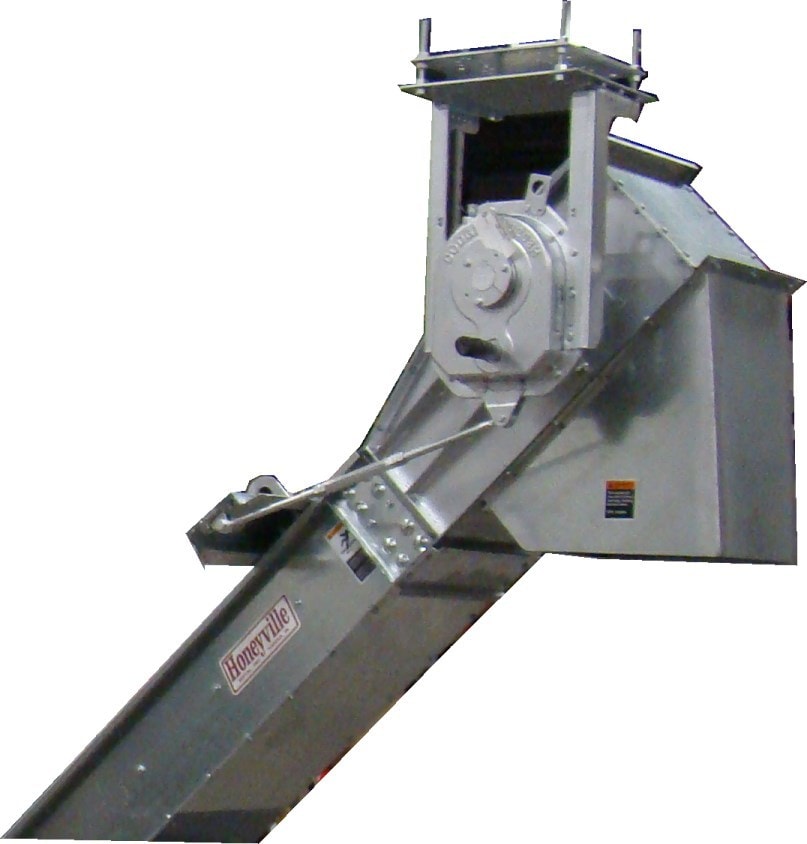

• Material: All G-90 galvanized steel and bolted construction with pre-assembled head, bend, tail, and individual trough sections
• Chain & Paddles: Features 81XH conveyor chain and 3/8″ thick UHMW paddles, pre-assembled in 10′ sections
